50 Ann Street.

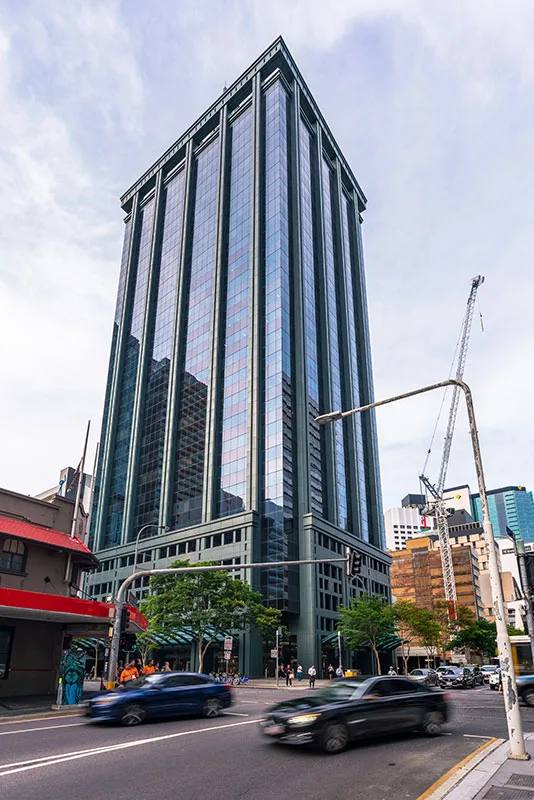

50 Ann Street is a prominent commercial office tower located within the Brisbane CBD. Originally constructed in 1974, the building comprises a 26-storey reinforced concrete tower supported by three basement levels that provide parking, services infrastructure and access to the building above.

The asset owner, Hines, engaged Sheer Force Engineering to undertake a detailed structural assessment of deterioration which had been observed throughout portions of the basement structure. Areas of concern included concrete spalling, reinforcement corrosion, moisture ingress, efflorescence and deterioration associated with construction joints and retaining wall interfaces.

Importantly, the objective was not simply to document defects.

The objective was to understand why deterioration was occurring, evaluate the associated risks and provide a practical roadmap for remediation and long-term asset management.

Many commercial assets built in the 1970s are now approaching an age where deterioration becomes increasingly visible.

The biggest challenge is often not identifying defects.

It is understanding which defects require intervention today, which defects can be safely monitored and which underlying causes must be addressed to prevent recurring maintenance costs.

At 50 Ann Street, the observed issues included:

• Concrete spalling.

• Reinforcement corrosion.

• Moisture ingress.

• Efflorescence.

• Failing historic repairs.

• Deterioration at construction joints.

• Waterproofing-related concerns.

• Corrosion to retaining wall reinforcement.

Several defects had already been repaired previously but were exhibiting signs of recurring deterioration. This suggested the symptoms had been treated while the underlying causes had remained unresolved.

The challenge was therefore to move beyond surface observations and identify the mechanisms driving deterioration throughout the basement structure.

Sheer Force Engineering undertook a detailed structural condition assessment of the basement levels, focusing on both the defects themselves and the mechanisms that had caused them.

The assessment included:

• Site inspections.

• Defect mapping.

• Investigation of deterioration mechanisms.

• Review of construction joints.

• Assessment of water ingress pathways.

• Evaluation of corrosion-related damage.

• Risk assessment.

• Development of investigation scopes.

• Preparation of repair methodologies.

• Development of a long-term monitoring strategy.

A key finding was that many of the observed defects appeared to be linked to water travelling through construction joints within the suspended slabs and retaining wall interfaces. These joints created pathways that enabled moisture to reach reinforcement, leading to corrosion and progressive concrete deterioration over time.

Examples of these deterioration mechanisms included corrosion associated with leaking slab construction joints and reinforcement deterioration at retaining wall junctions where moisture was likely accumulating over extended periods.

Rather than immediately specifying broad remediation works, SFE developed an investigation framework designed to confirm deterioration mechanisms before final repair scopes were established. This reduced uncertainty and allowed future expenditure to be targeted where it would provide the greatest benefit.

The Findings

The investigation concluded that the basement structure was generally performing well considering its age and construction type.

However, several localised areas required attention to prevent deterioration progressing further.

The most significant findings included:

• Water ingress through slab construction joints.

• Concrete cancer associated with reinforcement corrosion.

• Failure of previous localised repairs.

• Corrosion at retaining wall reinforcement.

• Localised concrete cover deficiencies.

• Moisture-related deterioration associated with retaining wall interfaces.

Importantly, the risk assessment determined that none of the identified defects represented an immediate structural failure concern. The greater risk was that deferred maintenance would allow deterioration to continue, increasing future repair costs and disruption to building operations.

This distinction was critical because it enabled investment decisions to be based on evidence rather than alarm.

Sheer Force Engineering provided more than a condition assessment.

The final deliverable included:

• Prioritised risk evaluation.

• Investigation specifications.

• Concrete repair methodologies.

• Reinforcement repair details.

• Waterproofing recommendations.

• Construction joint repair procedures.

• Long-term inspection and monitoring strategies.

The result was a practical asset management roadmap that enabled the client to understand:

• What required repair.

• What required monitoring.

• Why deterioration was occurring.

• How future maintenance costs could be minimised.

• How the long-term performance of the structure could be preserved.

The project demonstrates that successful asset management is not simply about repairing defects. It is about understanding deterioration mechanisms early enough to intervene before those defects become major structural or financial problems.
